Suitable For Car:
FOR Mitsubishi ASX 2011-2013

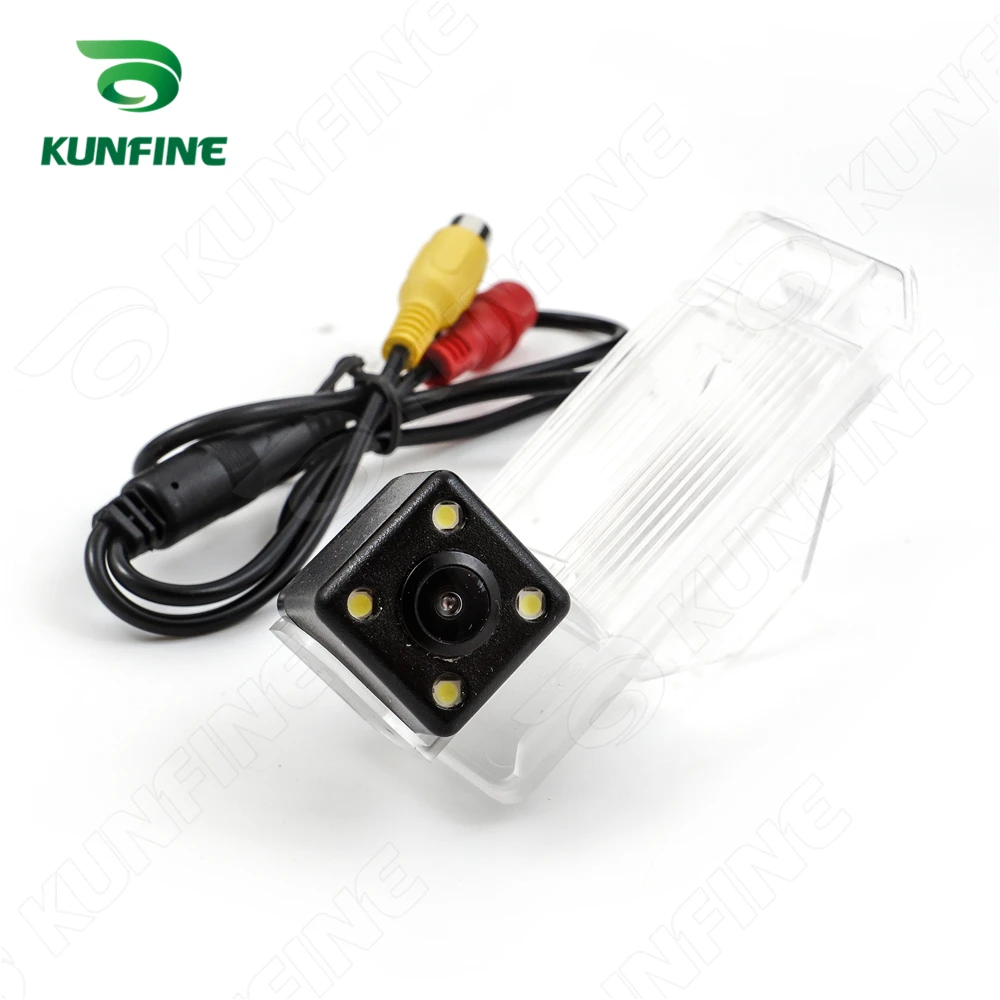

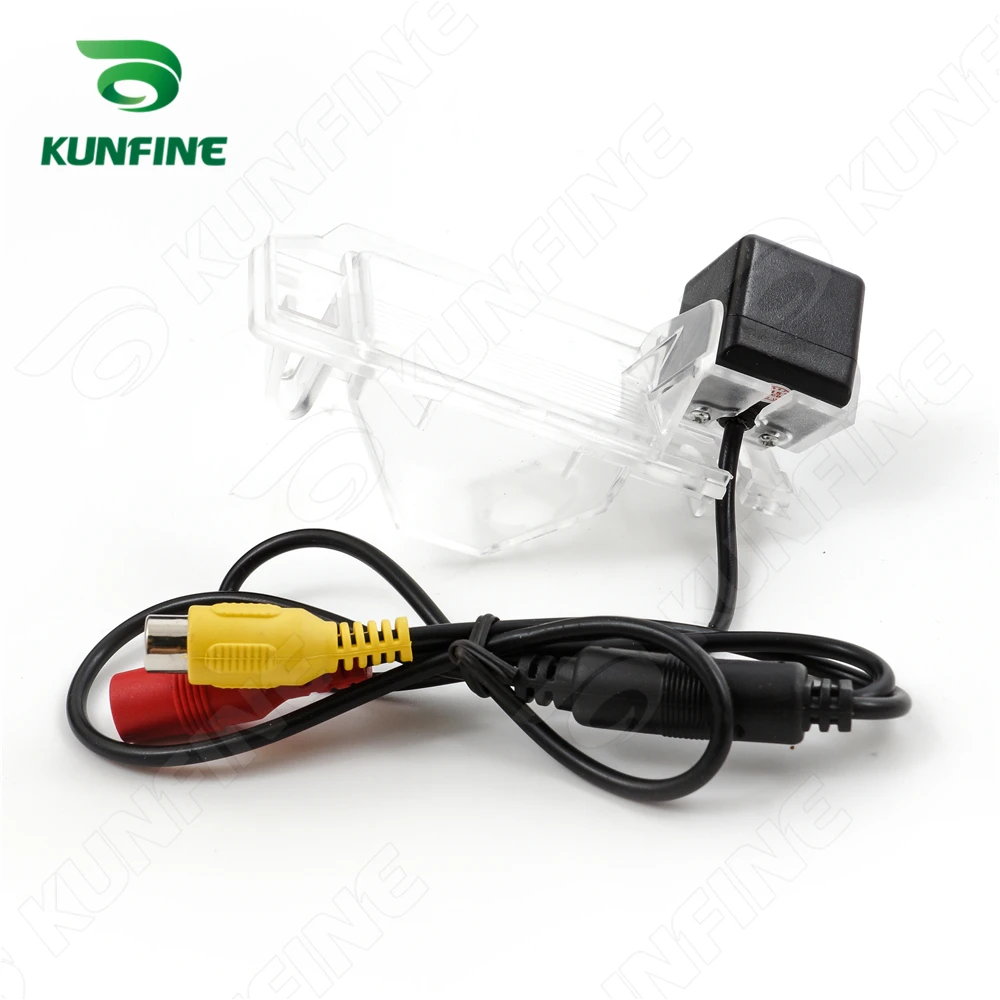

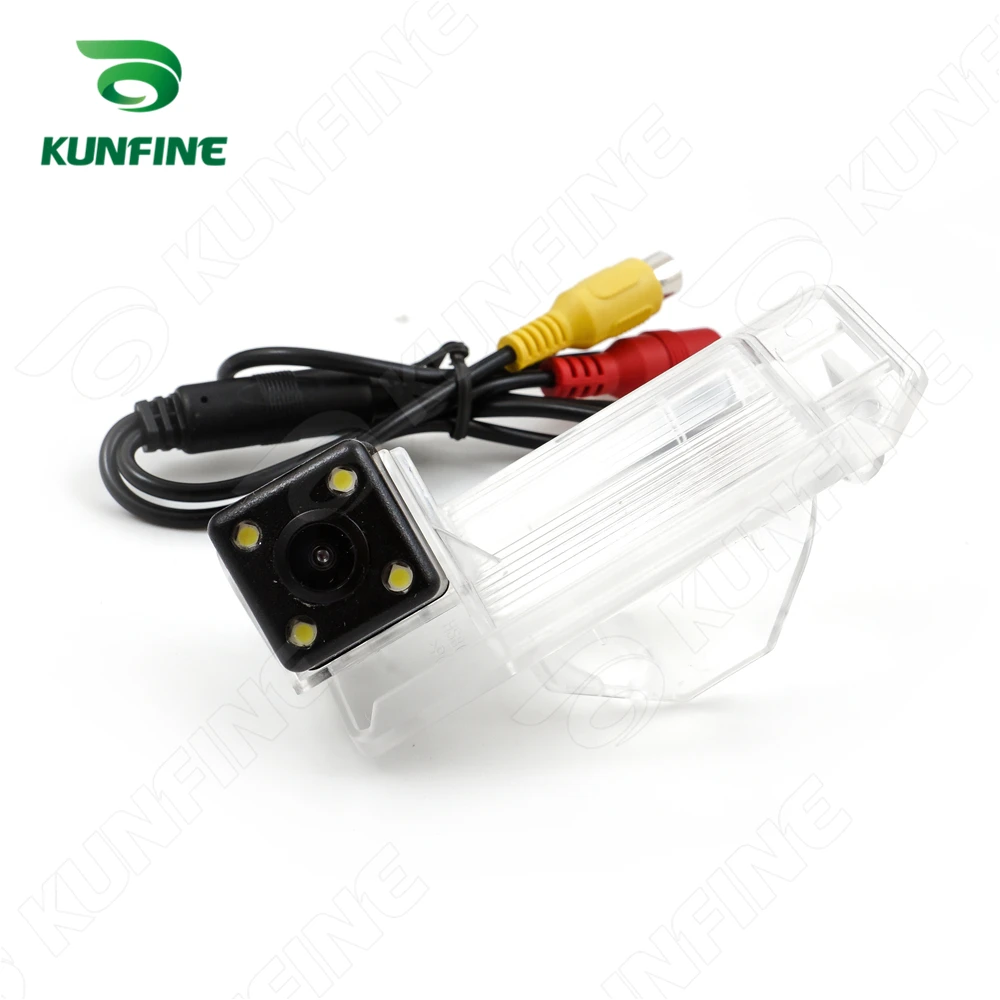

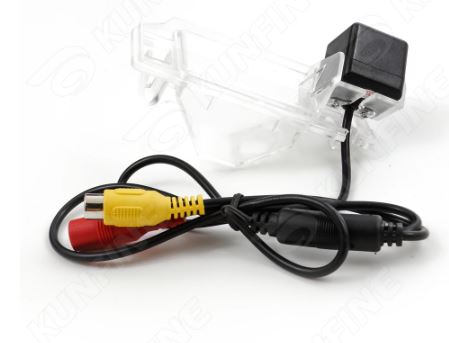

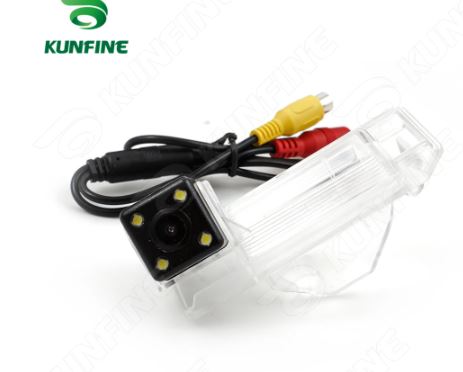

Car Rear View Camera Features:
High definition
Color night vision
Wateproof
Shock-proof
Wide viewing angle
Environmental & Durable
1-year warranty to every customer
Car Rear View Camera Pecification:
· Image Sensor: 1/3 "OV Color
· Effective Pixels: PAL 512 (H)x582 (V); NTSC 512 (H)x492 (V)
· Horizontal Resolution: 420 TVL
· Minimum Illumination: 1.0Lux F=1.2 (0Lux with IR on)
· Night Vision: 5-10meters
· Lens: 2.8mm
· Diagonal Viewing Angle: 120 degree optional
· Synchronization: Internal synchronization
· Signal to noise ratio: >48db
· Signal System: PAL/NTSC
· Electronic Shutter: Auto
· Video Output: RCA interface, 1.0Vp-p, 75Ohm
· White Balance: Auto
· Backlight Compensation: Auto
· Power: DC 12V
· Current Consumption: 50-60mA, Max 130mA with IR on
· Operating Temperature: -20C~ +60C, RH95% Max
· Storage Temperature: -30C ~ +80C, RH95% Max

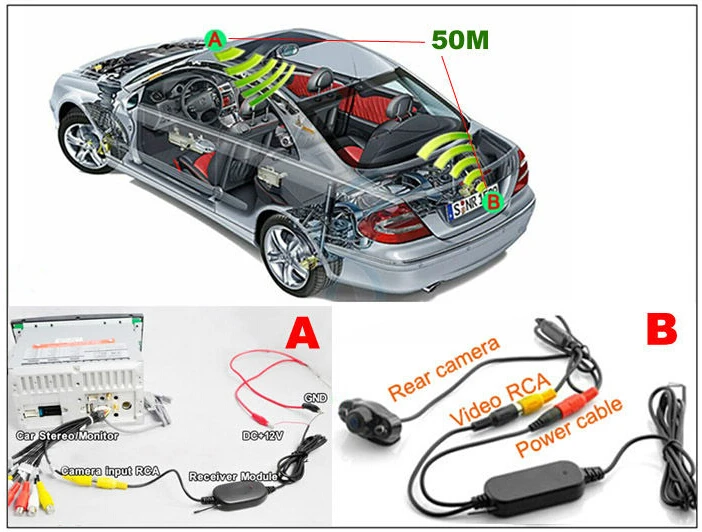

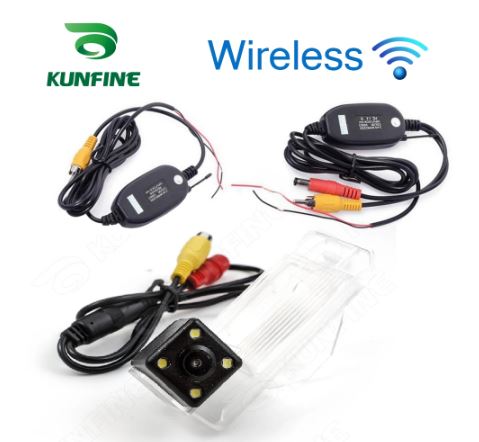

Wireless Video Transmitter & Receiver Specification:
Easy installation
Take one minute get your camera become a wireless camera
Wireless 2.4GHz transmitter/receiver set (12-Volt for vehicle installation)
Work range: up to about 50m (Hollowness)
Fit all RCA composite video connections
Power: DC 12V
Transmitter/Receiver cable length:1.5m
Advantages:

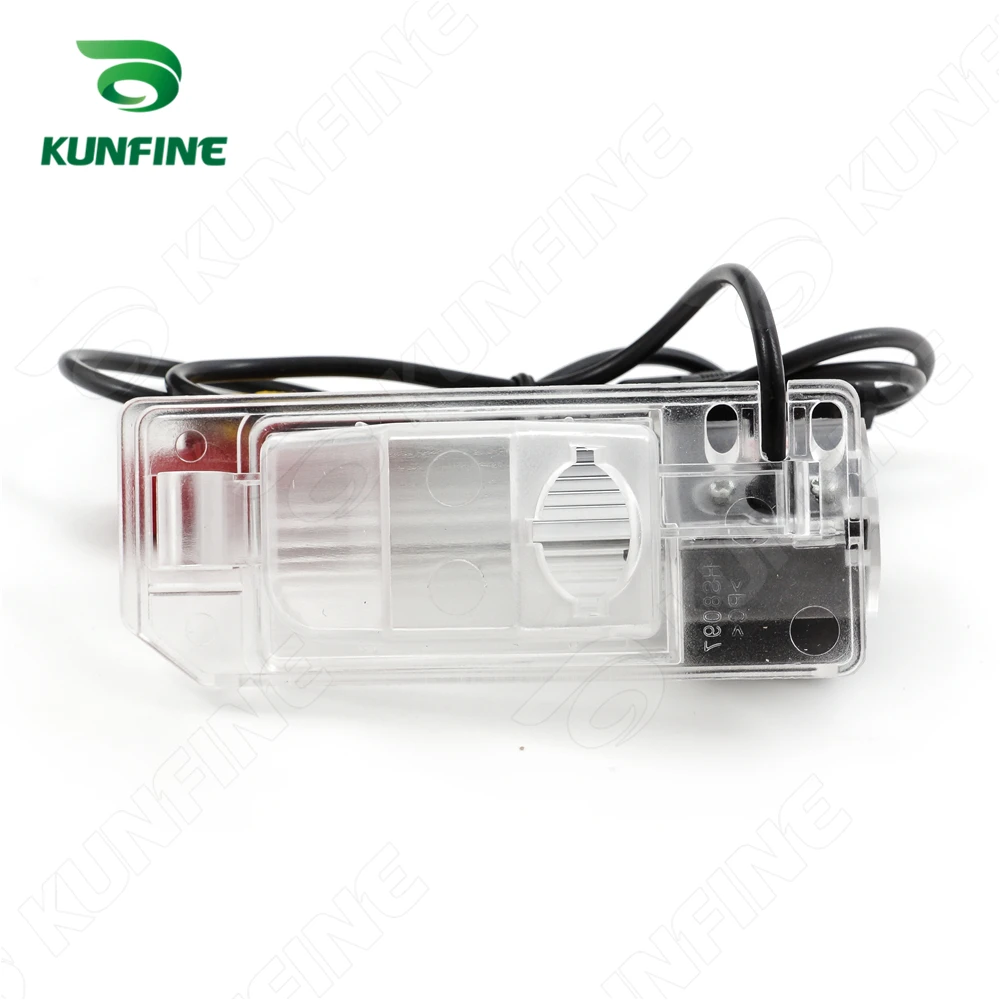

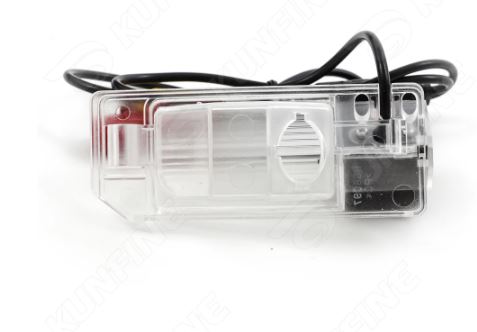

1.Easy Install Car View Camera :
No Need to drill hole, instead of car license plate Number light cover, Play and plug as a car license plate frame camera
2.High definition with AV plug :
Universal AV Plug connect car monitor Display Screen or car DVD GPS player directly , also could match wireless Video Transmitter Receiver to be a Wireless Car Rear View Camera
3.Night vision and Wide Angle Reverse parking Camera：

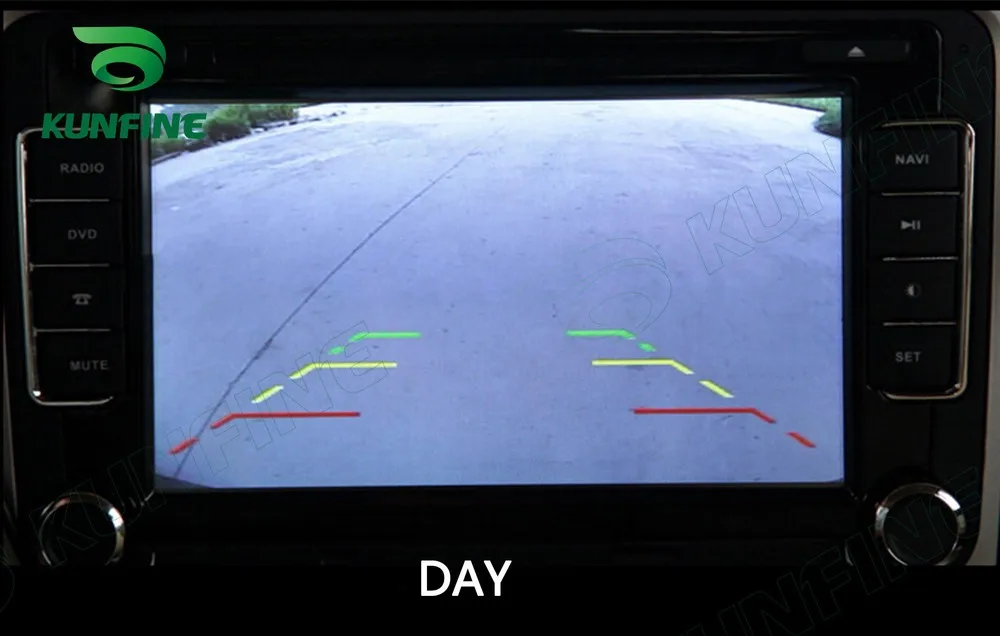

With Compensating Light Vehicle Camera ,include Super white LED lights and distance line ,help you see more clearly at night

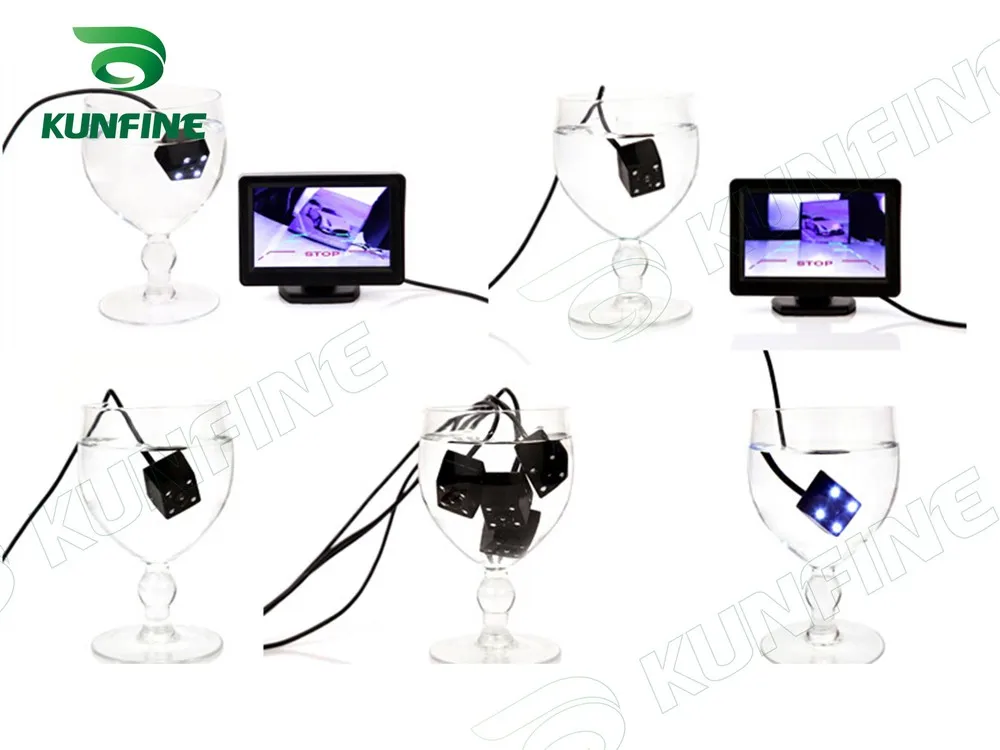

4.Shock-proof and Waterproof Back Up Parking Camera :
Driver See clearly when Driving or bad weather
5.Universal car rear view camera with 1 year warranty to every customer .
Package Contents:(Two Choose : A is wire camera , B is wireless camera)

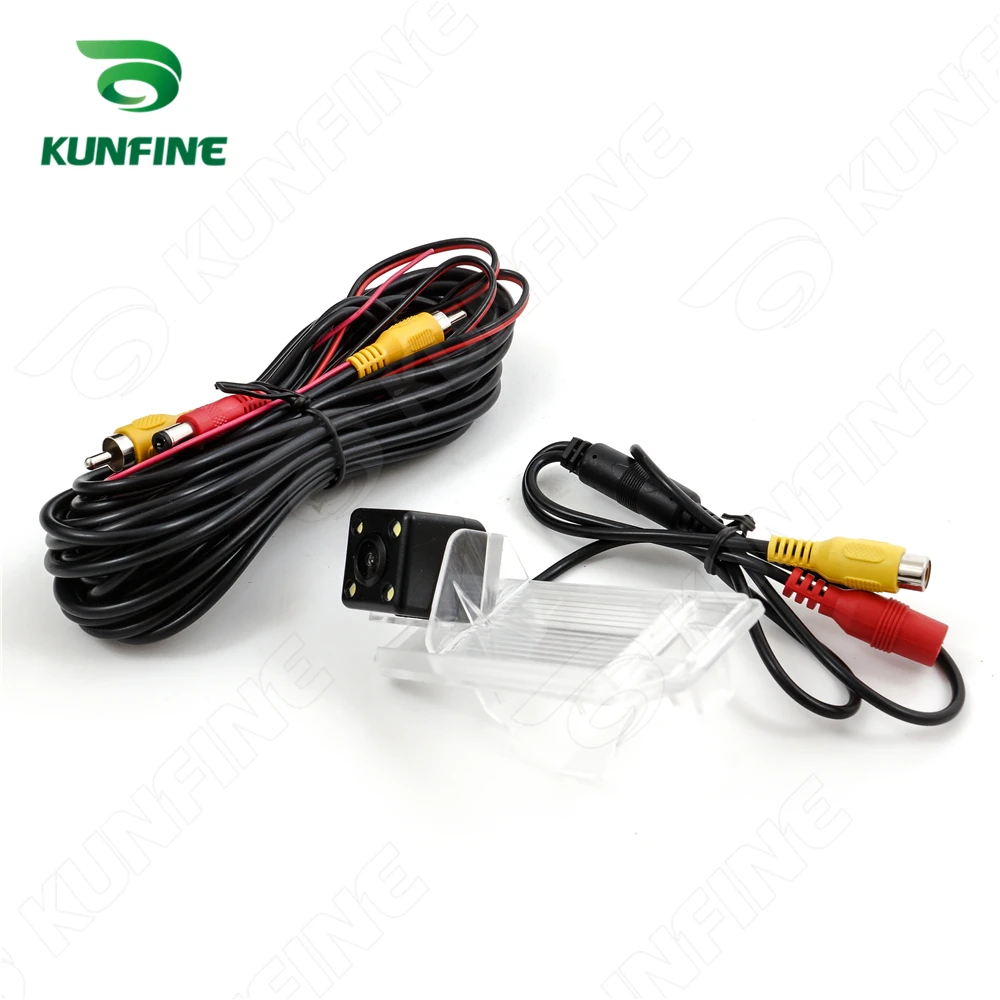

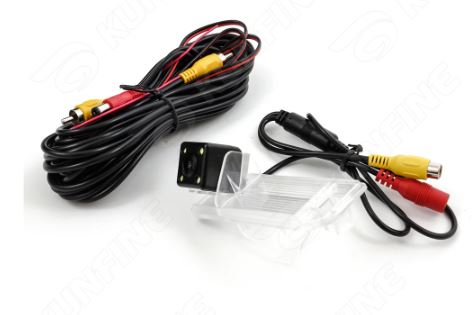

Package Contents A ：Wire Camera
1 x Car Rear View Camera

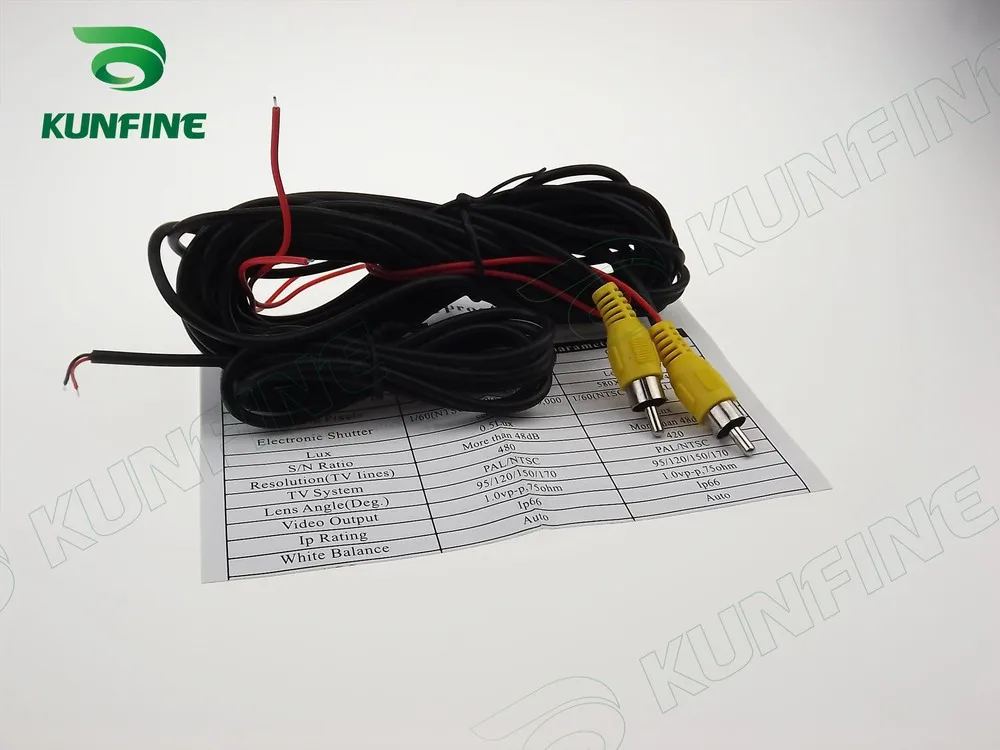

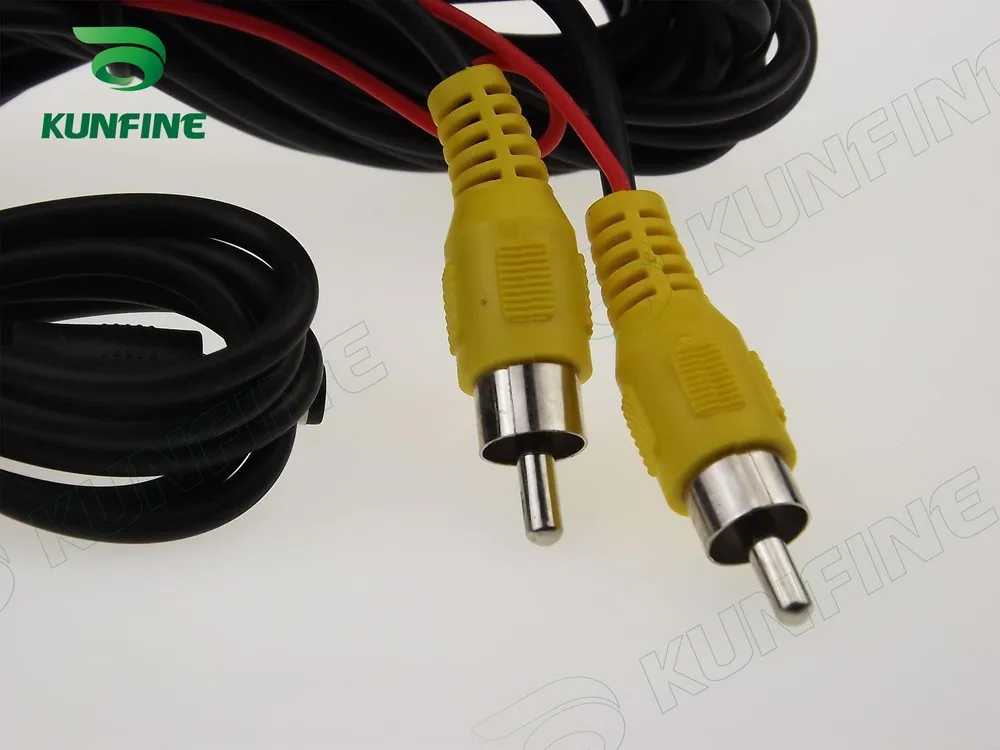

1 x 6M Power & Video Cable
1 x user manual

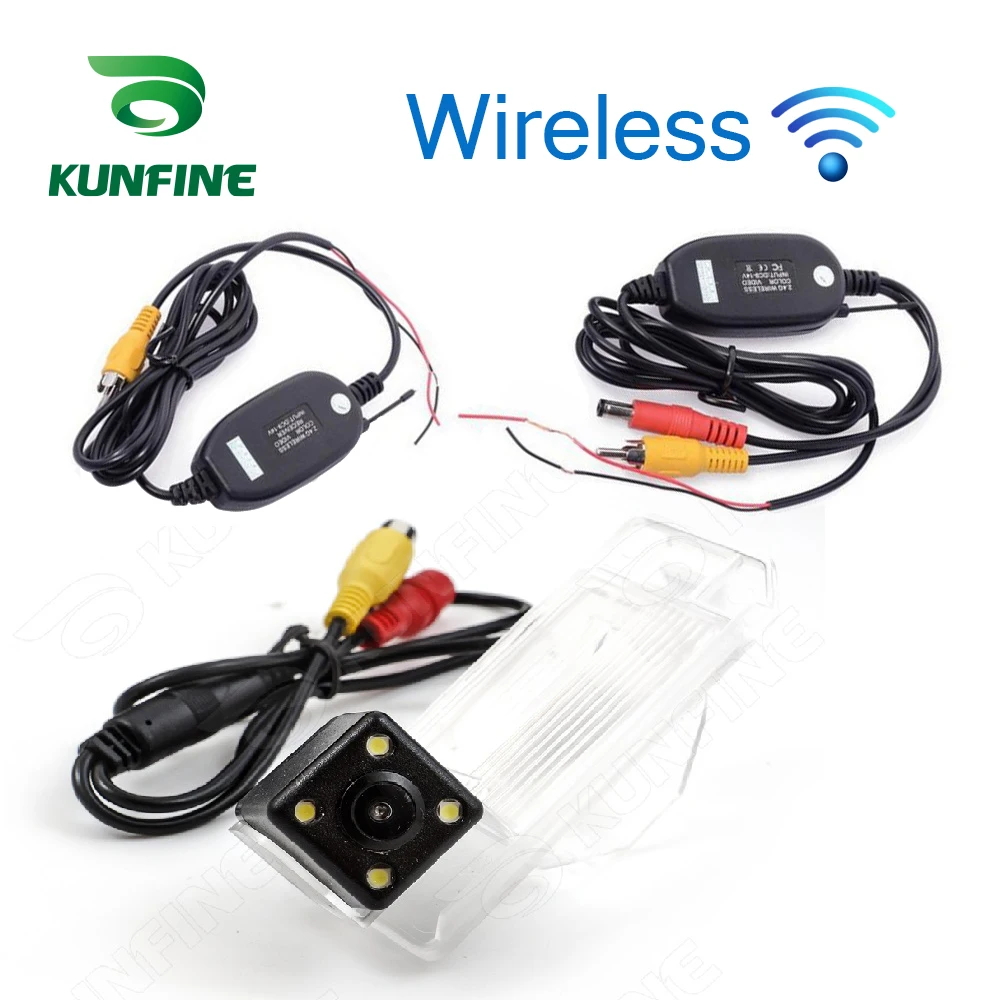

Package Contents B ：Wireless Camera
1 x Car Rear View Camera
1 x Wireless Transmitter + Receiver Cable
1 x user manual

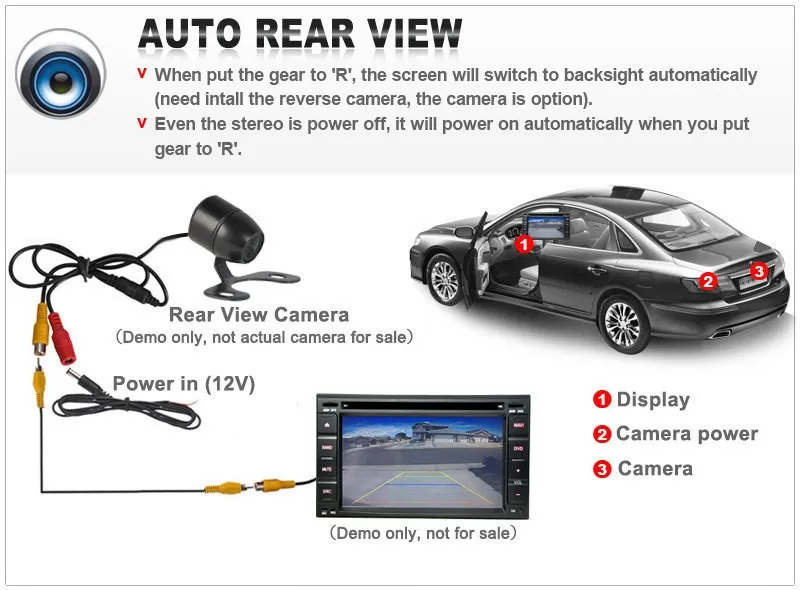

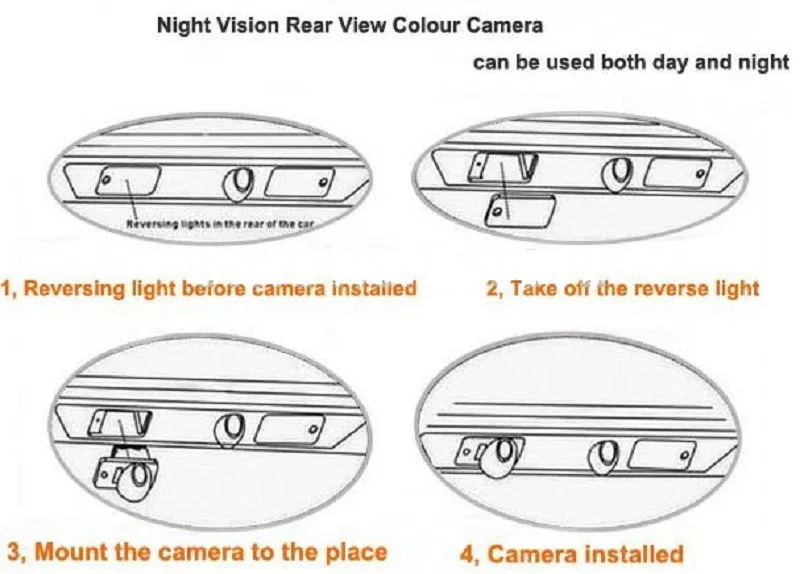

How to Install
Take out your stock license plate light at the back of your car.
Fix the camera to where the stock license plate light was.
Connect the built-in license plate light of the camera to where the stock license plate light was connected to get the power

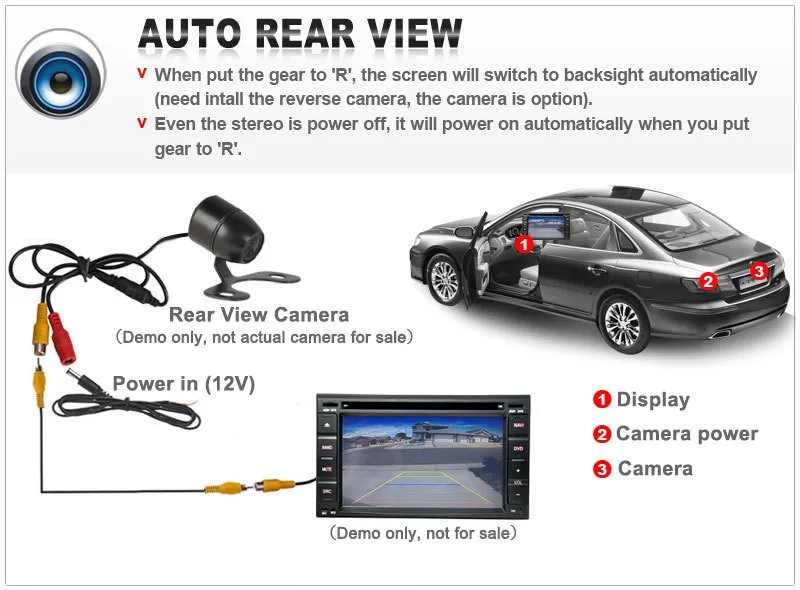

Connect the power of the camera to your reverse lights - red wire to positive and black wire to negative.
Connect the video cable of the camera to the extension cord.
Connect the extension cord to your car monitor.
You will see the images when your car is in reverse shift.
